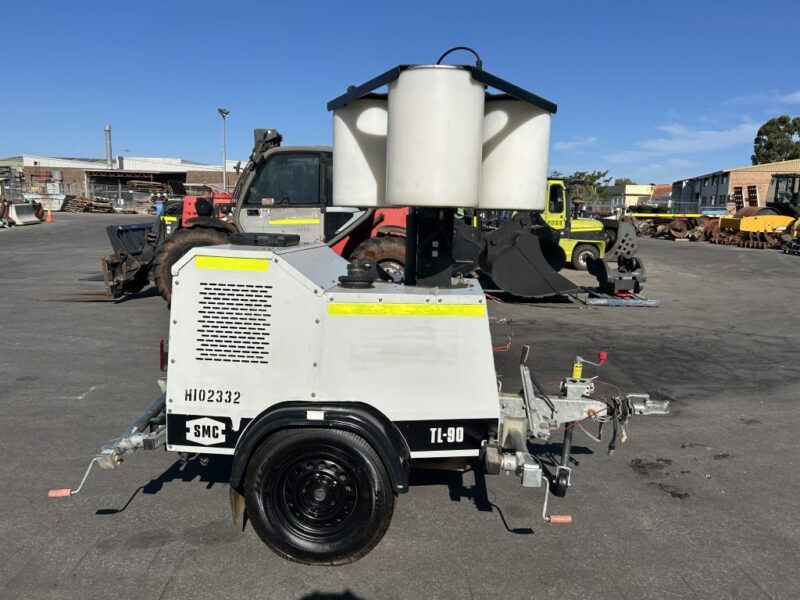

2013 POWERLITE SMC TL90 MOBILE LIGHTING TOWER 1920w LED POD

$7,250.00 Plus GST

$7,975.00 Inc GST

Compact lighting tower trailer mounted enclosure
Kubota D905 3-cylinder diesel, 4 Pole 240-volt 50Hz alternator, 5 kW power
5.2-metre vertical action hydraulic mast height, 4 sections, 360’ rotation
Mast Actuation: hydraulic 12-volt powerpack, raise / lower time 12 / 18 seconds
Lamps: 3 x 640-watt / 240-volt LED POD lights
Trailer Dimensions Fully Deployed L W H: 270 cm x 263 cm x 523 cm
Hour meter (hours showing): 2706 hours
Rego: Condition: Good
Features: LED POD lamps (low glare), auto run timer, mast deployment alarm and safety system, low noise level operation, fork tyne pockets and single lift eye for transportation
Accessories: battery isolator, emergency stop, beacon, wind down prop legs, 15amp 240 volt outlet, 15 amp 240 volt inlet, 4 x transport tie down points
Axle Suspension Configuration: Single axle, independent rubber suspension
Brakes: mechanical override cable operated, drum/ shoe, lever operated park brake
Tow Hitch: Override 50mm tow ball
Tare: 1050 kg
Colour (Exterior): white
Tyre Size: 185R14C
Trailer Dimensions Transport L W H: 270 cm x 132 cm x 210 cm

1 in stock

Gary Silcock
0427 993 349
garys@aubuckets.com.au

Other Contacts

John Stonehouse
0400 609 105
johns@aubuckets.com.au

Mandi Crozier
0423 083 508
mandi@aubuckets.com.au

2013 Powerlite SMC TL90 Mobile Lighting Tower 1920w LED POD
Compliance (YOM): 10/2013 Registration:
VIN: 6U90000T901310538
Make: Powerlite
Model: SMC TL90 Serial Number: T901310538
Package Type: enclosed trailer mounted
Lamp Specification / Quantity: 3 x 640-watt / 240-volt LED POD
Mast Height (metres): 5.2 metres
Mast Number of Sections: 4 sections
Mast Rotation(degrees): 360’ mast rotation
Mast Actuation: hydraulic – 12-volt power pack
Mast Raise / Lower Time: 12 / 18 seconds
Trailer Dimensions Fully Deployed L W H: 270 cm x 263 cm x 523 cm
Engine Type: 3-cylinder diesel (non turbo)
Engine Make/Model: Kubota D905
Engine Number: 1DE2464
Fuel Tank Capacity: 130 litres Maximum Run Time: approx. 85 hours
Bunding: Yes 120% engine and fuel liquids
Noise Level @ 7 metres (approx.): approx. 60 dB
Alternator: 4 Pole 240-volt 50Hz
Continuous Power / Stand by Power: 5 kW / 5.5 kW
Power Sockets: 1 x 15-amp outlet / 1 x 15-amp outlet
Stabilisers: 4 x wind down prop legs
Axle Configuration: single axle beam with independent suspension
Suspension Type: independent rubber suspension
Brake Type: cable operated mechanical override drum and shoes
Brakes: Drum / Disc: drum brakes
Park brake: drum brakes cable lever operated
Tare: 1050 kg
Colour (Exterior): white
Tyre Size: 185R14C
Rims: Material / Number of studs: steel 5 stud
Tow Hitch Make/ Type/ Size: AL-KO override 50mm ball tow hitch
Drop Leg Type: Jockey wheel
Trailer Lights Type: LED rear lights
Features: POD lamps (low glare), auto run timer, mast deployment alarm and safety system, low noise level operation, fork tyne pockets and single lift eye for transportation
Fitted Accessories: battery isolator, emergency stop, beacon, wind down prop legs,15 amp 240 volt outlet,15 amp 240 volt inlet, 4 x transport tie down points
Service History: just serviced
Repairs Required: minor fault – 1 lamp not operating on 1^st setting for brightness

Service Sheet

Download(335 KB)

Electrical Test Sheet

Download(1 MB)

machcomm_table

Make	Powerlite SMC TL90	Model	SMC TL90
Year of Manufacture	2013	Serial Number	6U90000T901310538
Engine Serial Number	1DE2464	Engine Hours	2706
Frame Hours	2706
Engine Type (Cyl/Turbo)	3 cylinder diesel
Is Beacon Fitted	YES
Is Battery Isolator Installed	YES	Do Buzzers and Alarms Work	Yes
Does it Start OK	Yes	Any Service History	Just serviced

Trailer Capacity

trailer_table

Trailer Type	Lighting Tower
ATM kg	1050
Tare kg	1050
Type of Hitch	50 mm tow ball / override brakes
How Many Axles	Single
Tyre Sizes	185R14C
Electric Brakes Fitted	No
Trailer Brake Type	Drum
Additional Accessories	emergency stop, beacon, wind down prop legs,15amp 240 volt outlet, 15 amp 240 volt inlet, 4 x transport tie down points, fork tyne pockets and single lift eye for transportation

Transport Details

These are approximate sizes not inc Packaging

telehandler_table

Weight kgs	1050	Length cm	270
Width cm	132	Height cm	210

Transport Details

These are approximate sizes not inc Packaging

Organize your own freight, links below to help you.

FREIGHT COMPANY Questions

Yes we have a forklift to load your attachment.
Yes we can put the item on a pallet if required.
Yes this yard can take a B Double size trailer or a standard low loader trailer.
Yes this yard you can drive all the way through.
Pickup Address and times
232 Welshpool road, Welshpool, WA 6106
8:30 am to 4:00 pm Monday to Friday
